Digital Alliance offers a 1-year limited warranty on this products.
The Limited Warranty Period starts from the date of purchase. If there is any issue, please contact us via support@da.co.id
SPECIFICATION |
|
|---|---|

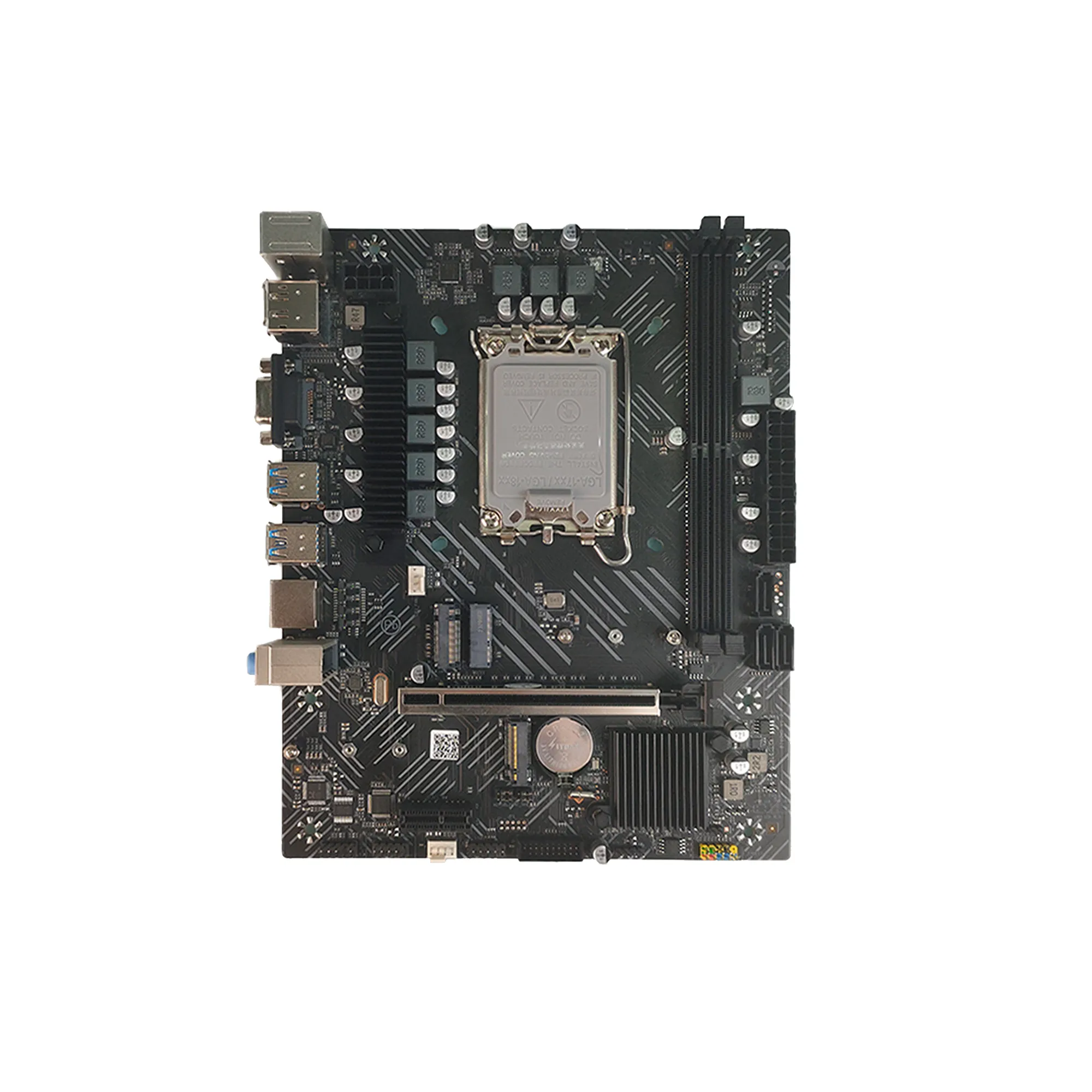

| MODEL | B760M PRO5 |
| CPU | Intel® Socket LGA 1700 for Intel® Core™ 14th, 13th, & 12th Gen, Pentium® Gold, & Celeron® Processors |
| CHIPSET | Intel® B760 single chip architecture |
| MEMORY | • 2 x DIMM slots, max. 128GB, DDR5 |
| • Support Max. 6800MHz | |
| • Dual Channel Memory Architecture | |
| GRAPHICS | • 1 x DisplayPort** |
| GRAPHICS | • 1 x VGA port |
| • 1 x HDMI® port*** | |
| *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates | |
| **Supports Max. 4K@60Hz as specified in DisplayPort 1.4 | |
| ***Supports 4K@60Hz as specified in HDMI 2.1 | |
| EXPANSION SLOTS | • 1 x PCIe 3.0 x1 slot |
| • 1 x PCIe 4.0 x16 slot | |
| STORAGE | • 3 x SATAIII Connector (6Gb/s) |
| • 1 x M.2 Support Gen4 x 4 (NVMe Only) | |
| • 1 x M.2 Support Gen4 x 4 (NVMe/NGFF) | |
| LAN | • REALTEK 8111H |
| • 10 / 100 / 1000 Mb/s auto negotiation, Half/Full duplex capability | |
| USB | • 4 x USB Gen 3.2 |
| • 2 x USB 3.0 ports | |
| • 2 x USB 2.0 ports | |
| AUDIO | • ALC897 |
| • 7.1 Channel, High Definition Audio | |
| INTERNAL I/O PORTS | • 3 x SATAIII Connector (6Gb/s) |
| • 1 x USB 2.0 Headers | |
| • 1 x USB 3.0 Header | |
| • 1 x 8-Pin Power Connector | |
| • 1 x 24-Pin Power Connector | |
| • 1 x CPU Fan Connector | |
| • 1 x System Fan Connector | |
| • 1 x Front Panel Header | |
| • 1 x Front Audio Header | |
| • 1 x Internal Stereo Speaker Header | |
| • 1 x Clear CMOS Header | |
| • 1 x COM Port Header | |
| BACK PANEL I/O PORTS | • 1 X PS/2 (keyboard/mouse) |
| • 1 x HDMI | |
| • 1 x DP | |
| • 1 x VGA | |
| • 2 x USB 3.2 (Gen1) ports 5GB/s | |
| • 2 x USB 3.2 (Gen2) ports 10GB/s | |
| • 1 x LAN | |
| • 3 x Audio Jack | |
| OPERATING SYSTEM | Windows® 11 64-bit, Windows® 10 64-bit |
| FORM FACTOR | Micro ATX Form Factor: 180mm x 220mm (W x L) |
